1) Conductor : Tin Coated Copper / Nickel Plated Copper
2) Insulation : Silicone Rubber
3) Braiding : Fiber-glass
4) Coating : Silicone Vanish
1) Good Heat Resistance and Electrical Insulation properties
2) Reinforced mechanical strength with Fiber-glass, strong for outside shock

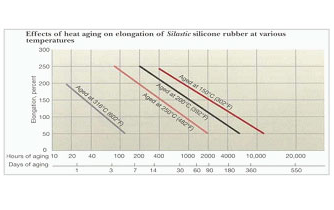

| Test Item | General | UL | CSA | ||
|---|---|---|---|---|---|
| STANDARD | 【 KS C 3004 】 Rubber ․ Plastic Insulation Cable Test Method | 【 UL 758 】 APPLIANCE WIRING MATERIAL |
【 C22.2 No. 127 】 EQUIPMENT WIRE | ||
| Dielectric Strength Test | Shall withstand without breakdown at AC 2KV/1 Min. | 1) Shall withstand without breakdown at AC 2KV/1 Min. before/after aging
2) Not less than 50% | Shall withstand without breakdown at AC 2KV/1 Min. | ||
| Physical Properties of Insulation | Un- aged | Tensile Strength | Not less than 0.40kgf/㎟ | Not less than0.352kgf/㎟ | Not less than 0.489kgf/㎟ |
| Elongation | Not less than 150 % | Not less than 100% | Not less than 100% | ||
| Aged | Tensile Strength | 1) Not less than 70% 2) Not less than 0.352kgf/㎟ | 1) Not less than 60% 2) Not less than 0.352 kgf/㎟ | Not less than 0.347kgf/㎟ | |
| Elongation | 1) Not less than 60% 2) Not less than 100% | 1) Not less than 25% 2) Not less than 50% | Not less than 50% | ||
| Heat Shock Test | Shall not show evidence of cracking of insulation and braiding | - | Shall not show evidence of cracking of insulation and braiding | ||
| Flexibility Test in the air oven | - | Shall not show evidence of cracking of insulation and braiding | - | ||
| Cold Bend Test | Shall not show evidence of cracking of insulation and braiding | Shall not show evidence of crackin of insulation and braiding | Shall not show evidence of cracking of insulation and braiding | ||
| Horizontal Flame Retardant Test | Flame in specimen shall not be continued more than 1 Min. and shall not be combustive of whole 300㎜ of specimen | 1) Shall not convey flame to combustible materials in its vicinity 2) Shall not convey flame to it length at a flaming rate greater the 25㎜/1min |
Shall not be combustive more than 100㎜. | ||
1) Internal Specification
| Conductor | Insulation | Braiding | Finished Product | ||
|---|---|---|---|---|---|
| Cross-sectionalArea (㎟) | Composition(Cores/㎟∮) | Thickness(㎜) | Diameter(㎜∮) | Thickness (㎜) | Diameter (㎜∮) |
| 0.14 | 7 / 0.16 | 0.34 | 1.15 | 0.20 | 1.55 ± 0.10 |
| 0.30 | 12 / 1.18 | 0.34 | 1.40 | 0.20 | 1.80 ± 0.10 |
| 0.50 | 20 / 0.18 | 0.34 | 1.60 | 0.20 | 2.00 ± 0.20 |
| 0.75 | 30 / 0.18 | 0.63 | 1.85 | 0.20 | 2.25 ± 0.20 |
| 1.00 | 40 / 0.18 | 0.35 | 2.00 | 0.20 | 2.40 ± 0.20 |
| 1.25 | 50 / 0.18 | 0.37 | 2.20 | 0.20 | 2.60 ± 0.20 |
| 1.50 | 60 / 0.18 | 0.37 | 2.35 | 0.20 | 2.75 ± 0.20 |
| 2.00 | 37 / 0.26 | 0.44 | 2.70 | 0.25 | 3.20 ± 0.20 |
| 2.50 | 47 / 0.26 | 0.47 | 3.00 | 0.25 | 3.50 ± 0.20 |
| 3.00 | 38 / 0.32 | 0.51 | 3.30 | 0.25 | 3.80 ± 0.20 |
| 3.50 | 44 / 0.32 | 0.58 | 3.60 | 0.25 | 4.10 ± 0.20 |
| 4.00 | 50 / 0.32 | 0.55 | 3.70 | 0.25 | 4.20 ± 0.20 |
| 5.50 | 68 / 0.32 | 0.62 | 4.60 | 0.25 | 5.10 ± 0.20 |
| 5.50 | 35 / 0.45 | 0.62 | 4.40 | 0.25 | 4.80 ± 0.20 |
| 6.00 | 38 / 0.45 | 0.60 | 4.40 | 0.25 | 4.90 ± 0.20 |
| 8.00 | 50 / 0.45 | 0.72 | 5.10 | 0.25 | 5.60 ± 0.30 |
| 8.00 | 99 / 0.32 | 0.71 | 5.20 | 0.25 | 5.70 ± 0.30 |
| 10.00 | 63 / 0.45 | 0.69 | 7.00 | 0.25 | 6.00 ± 0.30 |
| 14.00 | 7 / 38 / 0.26 | 0.76 | 7.00 | 0.30 | 7.60 ± 0.30 |
| 16.00 | 98 / 0.45 | 0.68 | 6.50 | 0.30 | 7.10 ± 0.30 |
| 22.00 | 7 / 20 / 0.45 | 0.82 | 8.60 | 0.30 | 9.20 ± 0.40 |
| 25.00 | 7 / 22 / 0.45 | 0.85 | 9.00 | 0.30 | 9.60 ± 0.40 |
| 35.00 | 7 / 31 / 0.45 | 0.99 | 10.8 | 0.40 | 11.60 ± 0.50 |
| 38.00 | 7 / 34 / 0.45 | 1.20 | 11.70 | 0.40 | 12.30 ± 0.50 |
| 60.00 | 19 / 20 / 0.45 | 1.31 | 14.30 | 0.50 | 15.30 ± 0.50 |
| 70.00 | 19 / 24 / 0.45 | 2.32 | 16.40 | 0.50 | 17.40 ± 0.70 |
| 95.00 | 19 / 32 / 0.45 | 2.90 | 19.40 | 0.50 | 20.40 ± 0.70 |
2) UL Specification
| ULStyle No | Rating | AWG No | Insulation Thickness | Remark | ||
|---|---|---|---|---|---|---|
| Temperature(℃) | Voltage | Rubber | Braiding | |||
| 3068 | 150℃ | 300V | 30 - 16 | Over 0.38 | Over 0.15 | |
| 3069 | 150℃ | 600V | 26 - 20 | 0.76 | 0.15 | |
| 3070 | 150℃ | 600V | 18 - 12 | 0.76P | 0.15 | |
| 3071 | 200℃ | 600V | 18 - 14 | 0.76 | 0.15 | |
| 3122 | 200℃ | 300V | 26 - 16 | 0.38 | 0.15 | |
| 3132 | 150℃ | 300V | 30 - 16 | 0.38 | 0.15 | |
| 3172 | 200℃ | 600V | 26 - 18 | 0.76 | 0.15 | |
| 3512 | 200℃ | 600V | 21-450kCmils | 0.76 | 0.15 | |
We certify that there is not contained Hazardous substances in this product such as
Lead(Pb), Mecury (Hg), Cadmum (Cd), Hexavalent Chromium(Cr+6), PPB, PBDE.
